Capacity and dimensions
Check the listed capacity and dimensions against the load, access width and working space.
High Capacity
LOCON LCT600 Mini Track Loader
Stand-on mini track loader with a 600 kg rated operating capacity and a 17.1 kW Kubota D1105 engine.
- Rated Operating Capacity: 600 kg
- Operating Weight: 1,490 kg
- Rated Power: 17.1 kW
Model-specific conformity information
The models marked with this statement have completed CE conformity assessment by TÜV Rheinland. Details are available on request.
LCT600 / INTERACTIVE EXPLORER
Get to know every angle.
Rotate the product, inspect its exterior and explore the visible assemblies.
AssembledExpanded
Drag to rotate · Scroll or pinch to zoom
Illustrative exterior and main assemblies. Separation is for viewing, not a service sequence. Internal mechanisms are not represented.

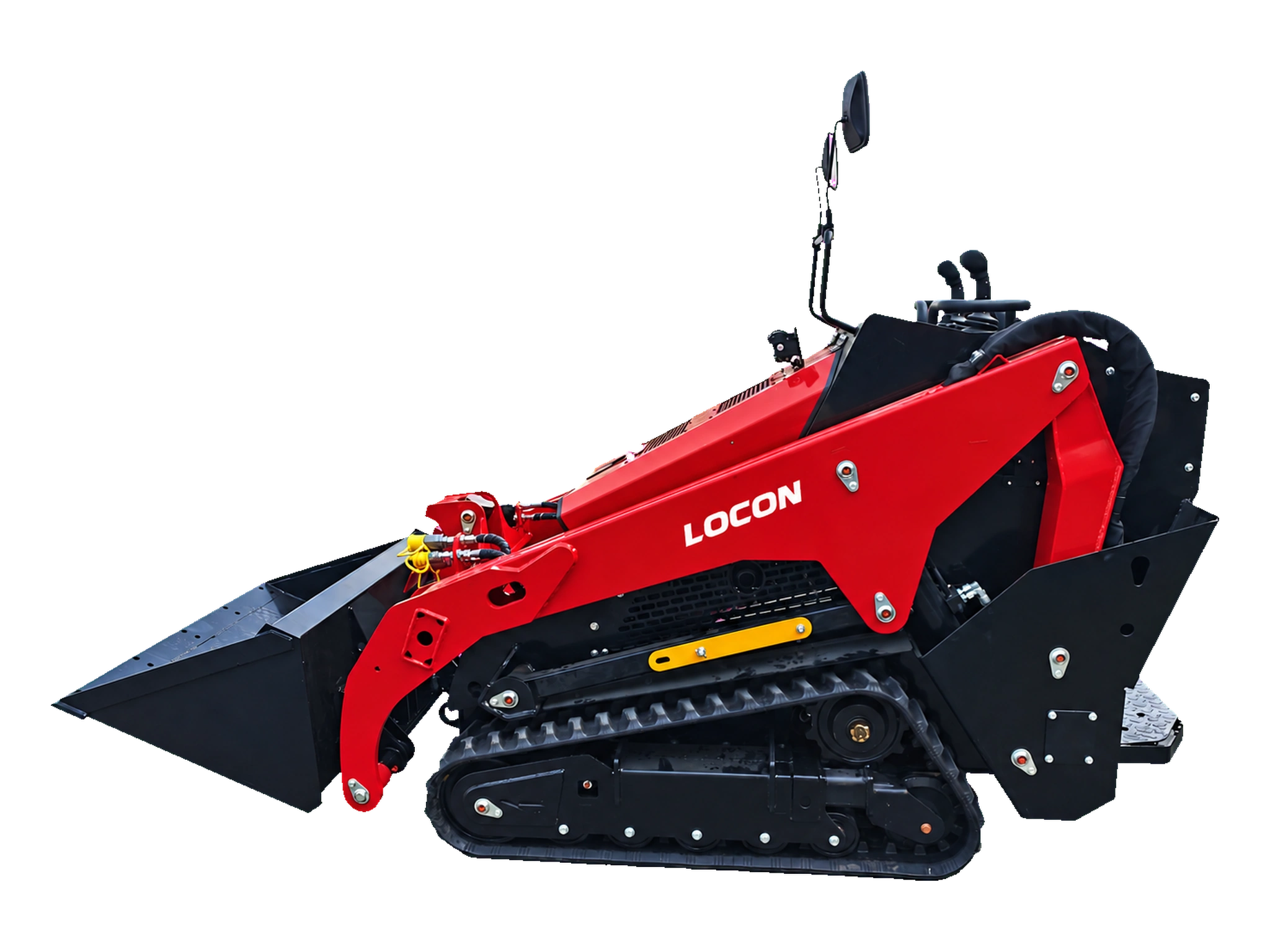

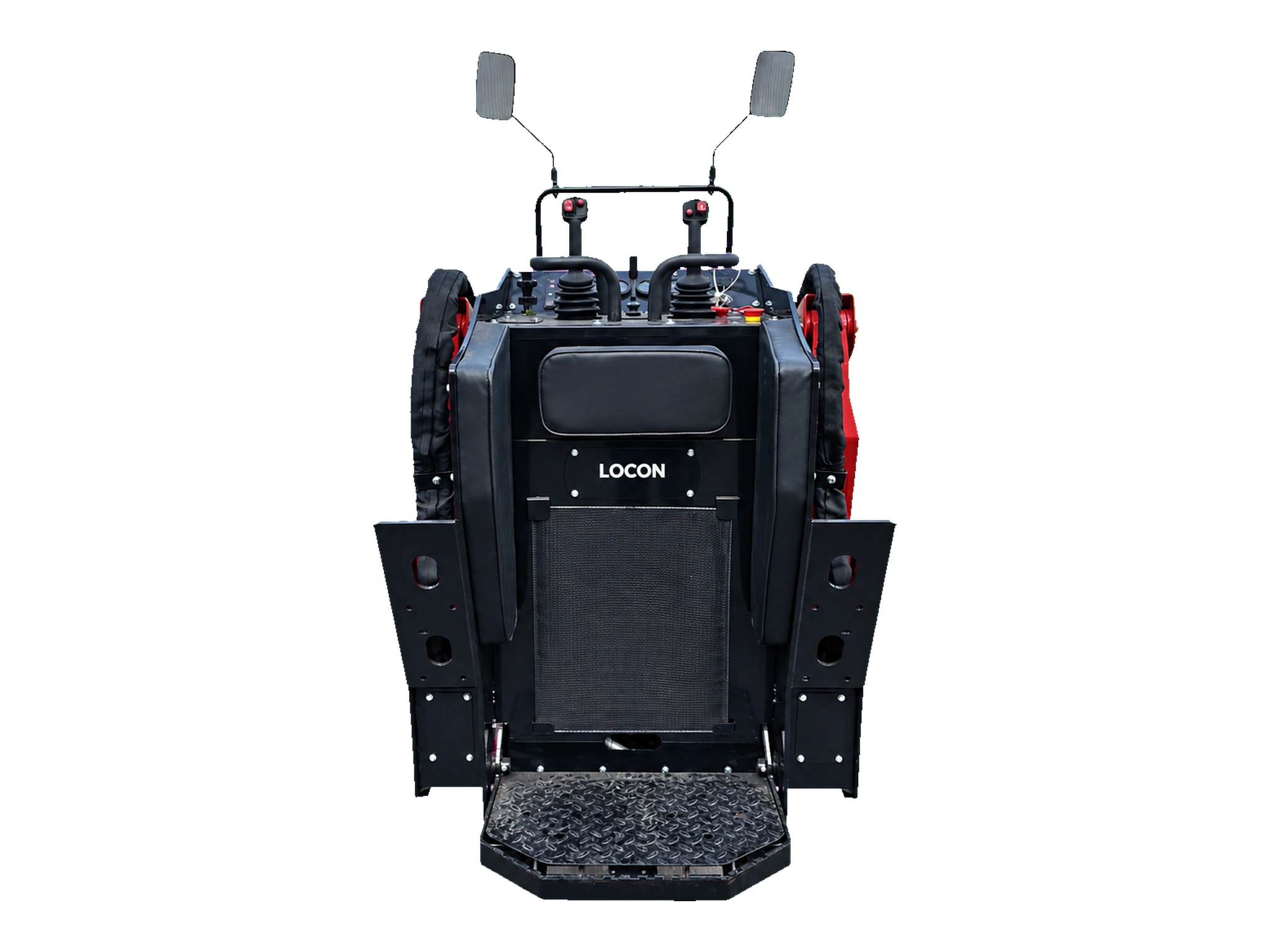

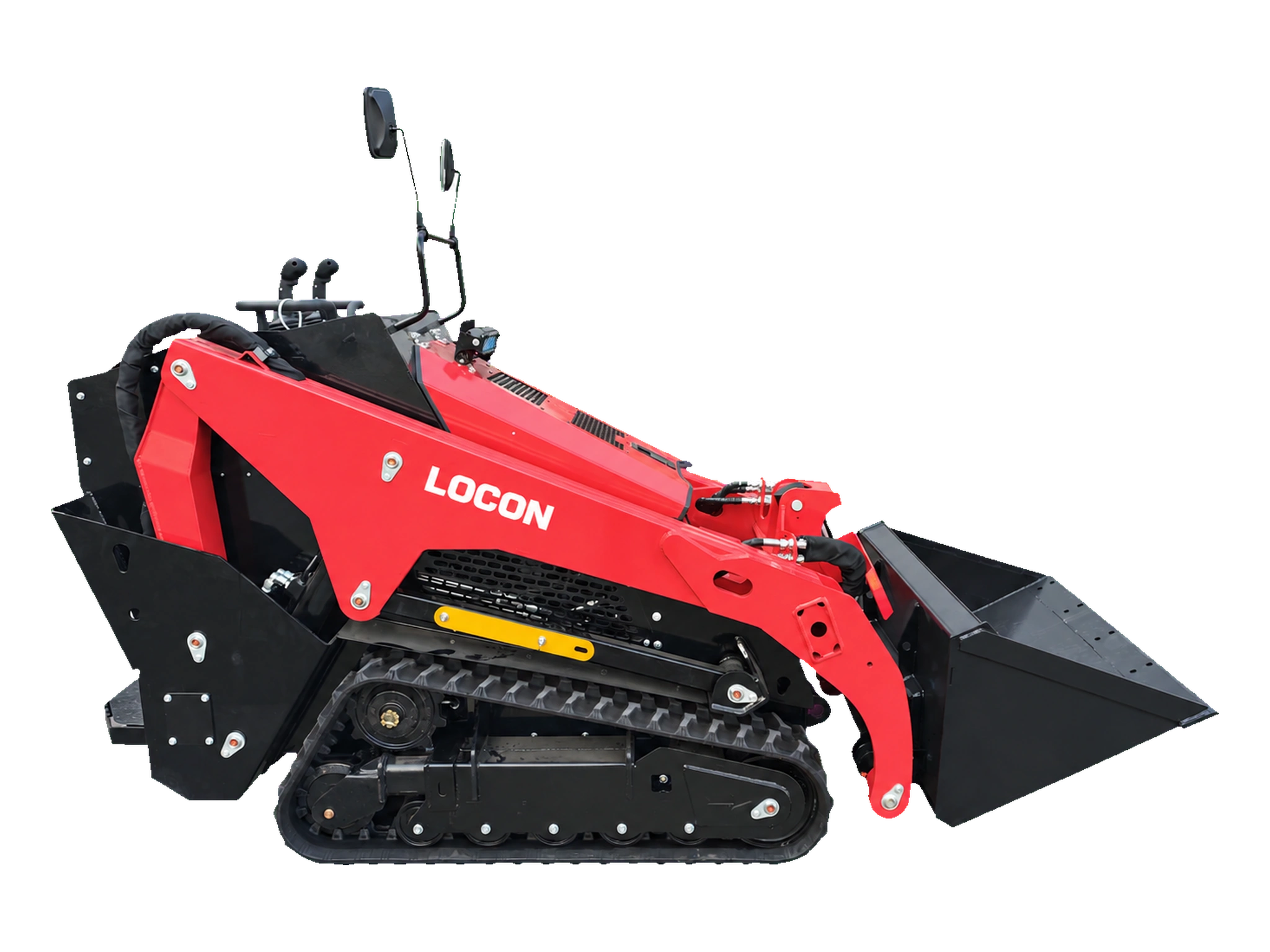

LOCON LCT600 Mini Track Loader / Product photographs
A closer look at the machine.
Branded images illustrate the exterior branding. Delivery configuration follows the agreed specification.
Product Overview
LOCON LCT600 Mini Track Loader
Stand-on mini track loader with a 600 kg rated operating capacity and a 17.1 kW Kubota D1105 engine.
Compare the specifications with your site access, load and attachment requirements. Contact us to discuss the configuration you need.
Rated Operating Capacity: 600 kg
Operating Weight: 1,490 kg
Rated Power: 17.1 kW
Before you order
Machine and attachment
Confirm the mounting interface, hydraulic pressure, flow and connections for the selected combination.
Configuration and delivery
Tell us the required configuration, quantity and delivery destination so we can prepare your quotation.
Technical Specifications
Technical Specifications
| 01 | Model | LCT600 |
|---|---|---|
| 02 | Engine | Kubota D1105 |
| 03 | Rated Power | 17.1 kW at 3,000 rpm |
| 04 | Operating Weight | 1,490 kg |
| 05 | Rated Operating Capacity | 600 kg |
| 06 | Tipping Load | 1,200 kg |
| 07 | Bucket Capacity | 0.19 m³ |
| 08 | Travel Speed | 0–4.3 km/h |
| 09 | Overall Dimensions | 1,880 × 1,000 × 1,408 mm |
| 10 | Gradeability | 30% |
| 11 | Recommended Side Slope | ≤15° |
| 12 | Electrical System | 12 V |
| 13 | Max. Lifting Height | 2,852 mm |
| 14 | Max. Dumping Height | 2,350 mm |
| 15 | Dumping Reach | 950 mm |
| 16 | Ground Clearance | 180 mm |
| 17 | Fuel Tank Capacity | 20 L |
| 18 | Hydraulic Oil Tank | 22 L |
| 19 | Working Pressure | 18 MPa |
LCT600 hydraulic configurations
Choose the hydraulic package for your attachment and work cycle. Confirm the required configuration when making an inquiry.
Hydraulic configuration A
Four pumps / three valves
- Total system flow
- 133 L/min
- Attachment flow
- 42 L/min
- Travel control
- Hydraulic pilot joystick
- Lift & bucket control
- Two-section mechanical valve
- Attachment control
- Single-section mechanical valve
Lifting and hydraulic-motor attachment operation can continue together.
Hydraulic configuration B
Three pumps / two valves
- Total system flow
- 100 L/min
- Attachment flow
- 33–48 L/min (shared flow)
- Travel control
- Hydraulic pilot joystick
- Lift & bucket control
- Shared three-section mechanical valve
- Attachment control
- Shared three-section mechanical valve
Flow is shared. Stop the hydraulic-motor attachment while lifting.
Hydraulic configuration C
Load-sensing pump / hydraulic pilot valves
- Total system flow
- 135 L/min
- Attachment flow
- 30–40 L/min
- Travel control
- Hydraulic pilot joystick
- Lift & bucket control
- Hydraulic pilot joystick
- Attachment control
- Single-section hydraulic pilot valve
Lifting and hydraulic-motor attachment operation can continue together.
Applications
Applications
- Construction and site preparation
- Farm and yard work
- Landscaping and property care
- Road and municipal maintenance
- Material handling in confined spaces
Attachments and configuration
Attachments and configuration
- Bucket
- Pallet fork
- Hydraulic earth auger
- Angle broom
- Concrete mixer bucket
- Log splitter
- Trencher
Attachment selection
Attachment selection
Listed tools are options to discuss, not confirmed combinations. Before use, check the loaded attachment weight, machine capacity at the working position, mounting interface and hydraulic requirements.
LOCON Hydraulic Earth Auger
LOCON Hydraulic Angle Broom
LOCON Concrete Mixer Bucket
LOCON Hydraulic Log Splitter
LOCON Trencher
