Capacity and dimensions
Check the listed capacity and dimensions against the load, access width and working space.
Compact
LCT220 Mini Track Loader
Compact power for confined worksites.
Discover the LOCON LCT220 Mini Track Loader, featuring a 220 kg rated operating capacity, compact tracked design and versatile performance for construction, landscaping and property maintenance.
- Rated Operating Capacity: 220 kg
- Operating Weight: 720 kg
- Rated Power: 16.8 kW
Model-specific conformity information
The models marked with this statement have completed CE conformity assessment by TÜV Rheinland. Details are available on request.
LCT220 / INTERACTIVE EXPLORER
Get to know every angle.
Rotate the machine, separate the main assemblies and take a closer look at what works together.
AssembledExpanded
Drag to rotate · Scroll or pinch to zoom
3D structure illustration. Internal components and hose routing are approximate; configuration follows the confirmed product specification.

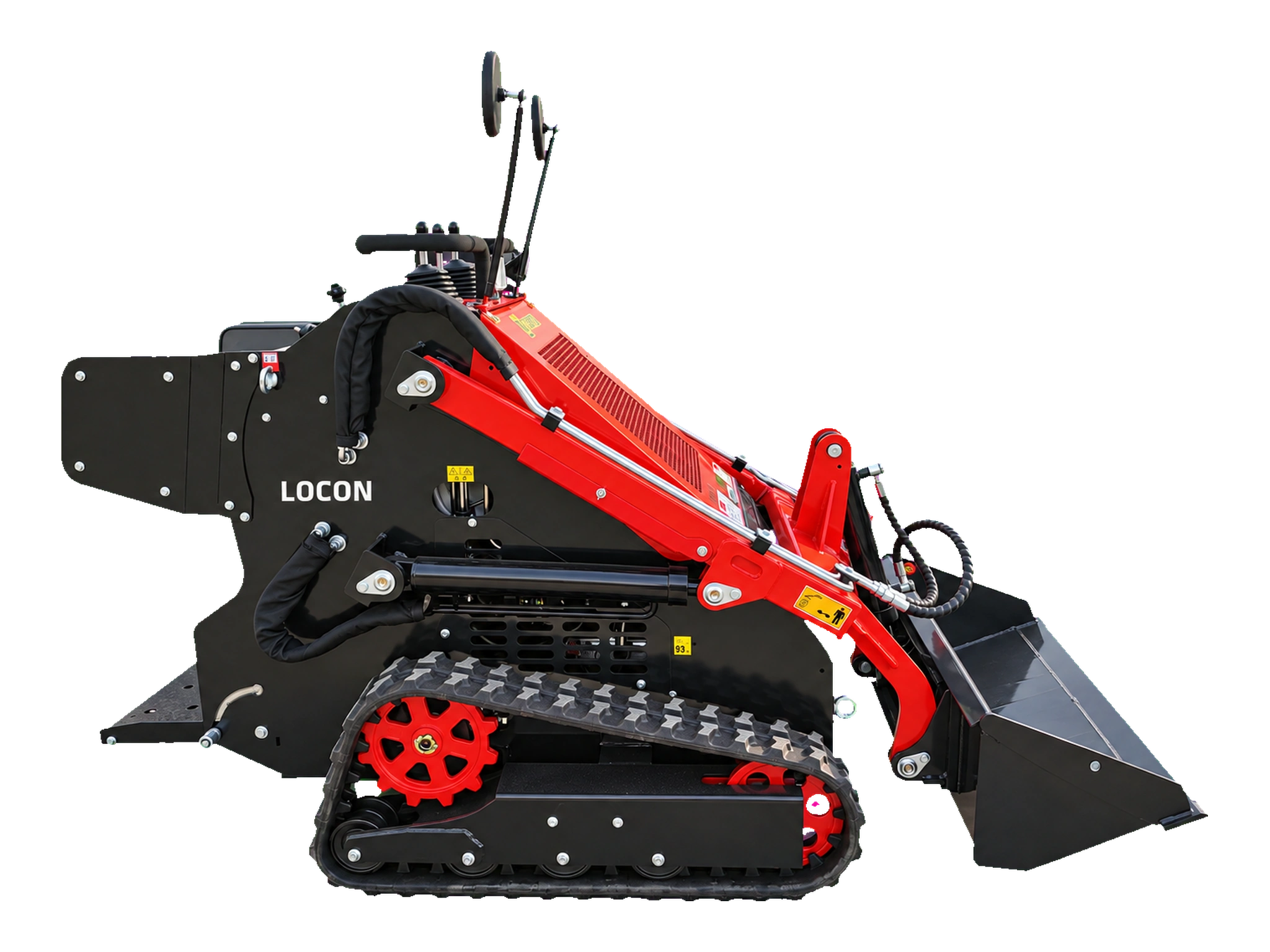

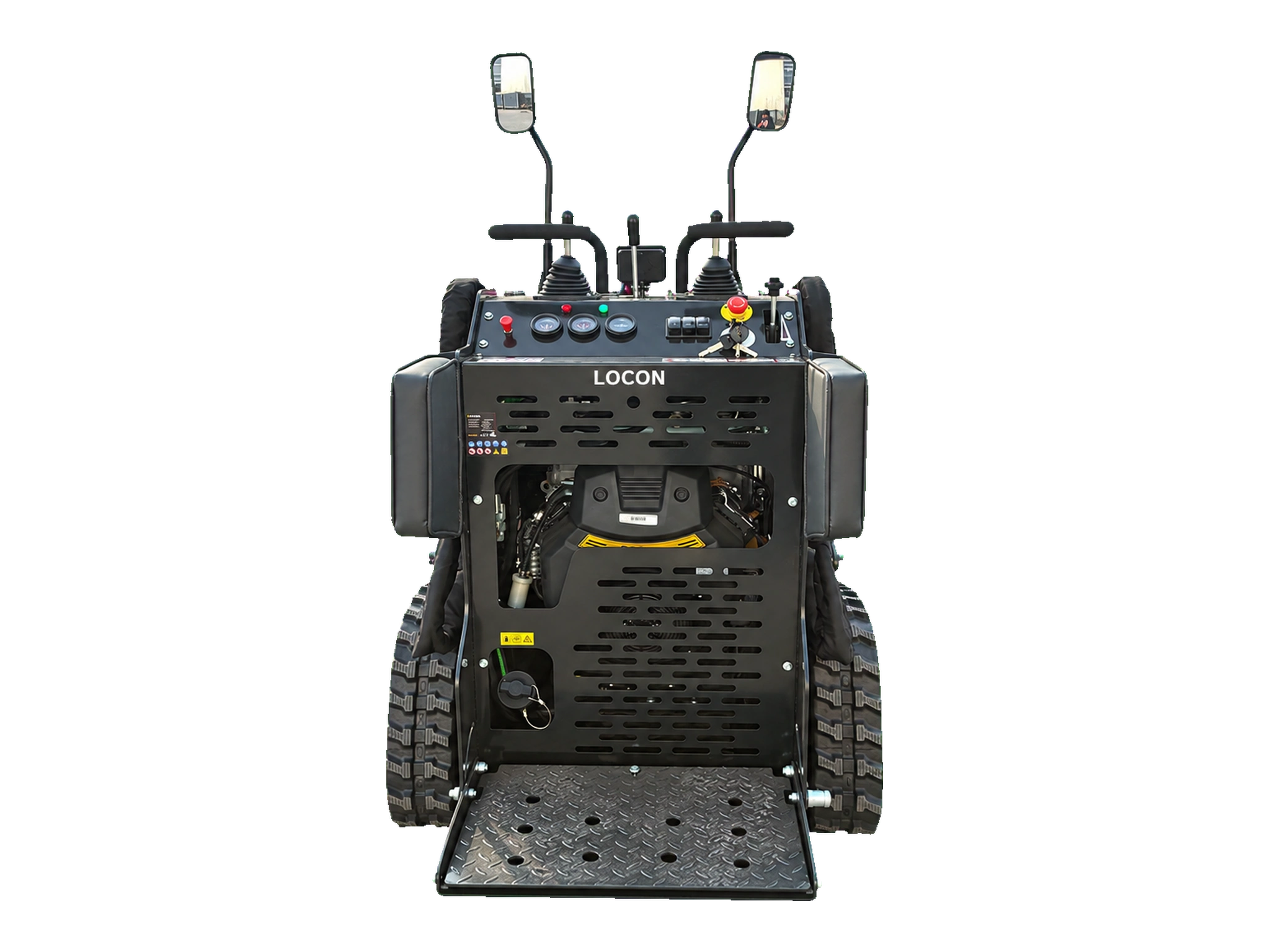

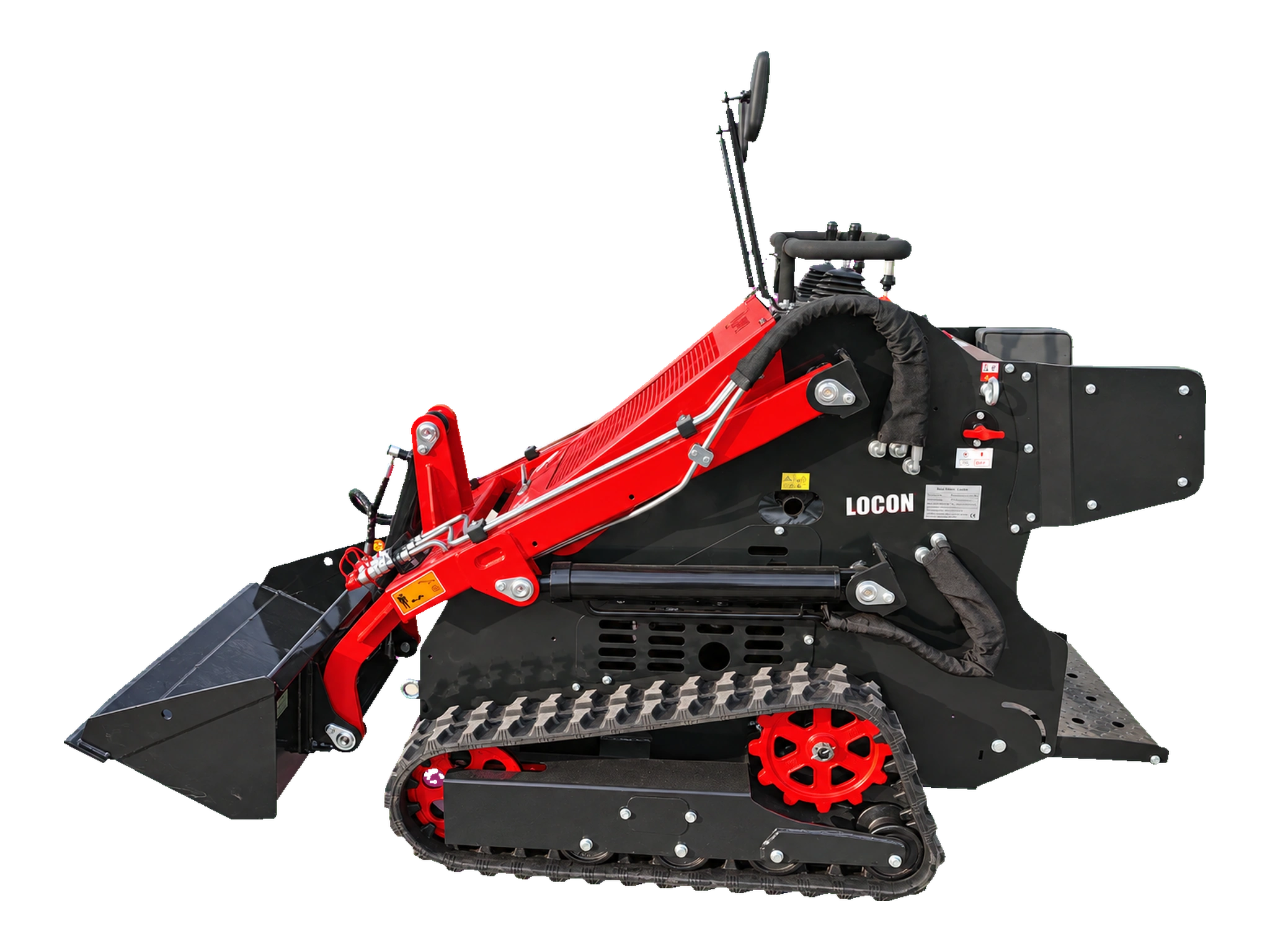

LOCON LCT220 Mini Track Loader / Product photographs
A closer look at the machine.
Branded images illustrate the exterior branding. Delivery configuration follows the agreed specification.
Product Overview
LOCON LCT220 Mini Track Loader
The LOCON LCT220 Mini Track Loader combines a 220 kg rated operating capacity with compact dimensions and a tracked undercarriage for confined working areas. Match attachments to construction, landscaping, agriculture and property maintenance tasks. This machine type is also known as a mini skid steer loader or compact utility loader. Confirm each attachment interface and hydraulic requirements before selection.
Compare the specifications with your site access, load and attachment requirements. Contact us to discuss the configuration you need.
Rated Operating Capacity: 220 kg
Operating Weight: 720 kg
Rated Power: 16.8 kW
Before you order
Machine and attachment
Confirm the mounting interface, hydraulic pressure, flow and connections for the selected combination.
Configuration and delivery
Tell us the required configuration, quantity and delivery destination so we can prepare your quotation.
Technical Specifications
Technical Specifications
| 01 | Model | LCT220 |
|---|---|---|
| 02 | Product | Mini Track Loader |
| 03 | Rated Operating Capacity | 220 kg |
| 04 | Bucket Capacity | 0.1 m³ |
| 05 | Bucket Width | 1000 mm |
| 06 | Tipping Load | 440 kg |
| 07 | Travel Speed | 0–2.6 km/h |
| 08 | Rated Hydraulic Pressure | 17 MPa |
| 09 | Lifting Time | 6.6 s |
| 10 | Lowering Time | 4.4 s |
| 11 | Dumping Time | 1.5 s |
| 12 | Operating Weight | 720 kg |
| 13 | Engine | R740 |
| 14 | Engine Type | Twin-cylinder Gasoline Engine |
| 15 | Rated Power | 16.8 kW / 3600 rpm |
| 16 | Fuel Tank Capacity | 18 L |
| 17 | Engine Oil Capacity | 1.6 L |
| 18 | Hydraulic Oil Tank | 25 L |
| 19 | Overall Dimensions | 2400 × 770 × 1330 mm |
| 20 | Packing Dimensions | 1940 × 800 × 1350 mm |
Applications
Applications
- Construction and site preparation
- Farm and yard work
- Landscaping and property care
- Road and municipal maintenance
- Material handling in confined spaces
Attachments and configuration
Attachments and configuration
- Bucket
- Pallet fork
- Hydraulic earth auger
- Angle broom
- Concrete mixer bucket
- Log splitter
- Trencher
Attachment selection
Attachment selection
Listed tools are options to discuss, not confirmed combinations. Before use, check the loaded attachment weight, machine capacity at the working position, mounting interface and hydraulic requirements.
LOCON Hydraulic Earth Auger
LOCON Hydraulic Angle Broom
LOCON Concrete Mixer Bucket
LOCON Hydraulic Log Splitter
LOCON Trencher
