Capacity and dimensions
Check the listed capacity and dimensions against the load, access width and working space.
Compact
LOCON LCT180 Mini Track Loader
Stand-on mini track loader with a 180 kg rated operating capacity and a 620 kg operating weight.
- Rated Operating Capacity: 180 kg
- Operating Weight: 620 kg
- Rated Power: 7.1 kW
Model-specific conformity information
The models marked with this statement have completed CE conformity assessment by TÜV Rheinland. Details are available on request.
LCT180 / INTERACTIVE EXPLORER
Get to know every angle.
Rotate the product, inspect its exterior and explore the visible assemblies.
AssembledExpanded
Drag to rotate · Scroll or pinch to zoom
Illustrative exterior and main assemblies. Separation is for viewing, not a service sequence. Internal mechanisms are not represented.

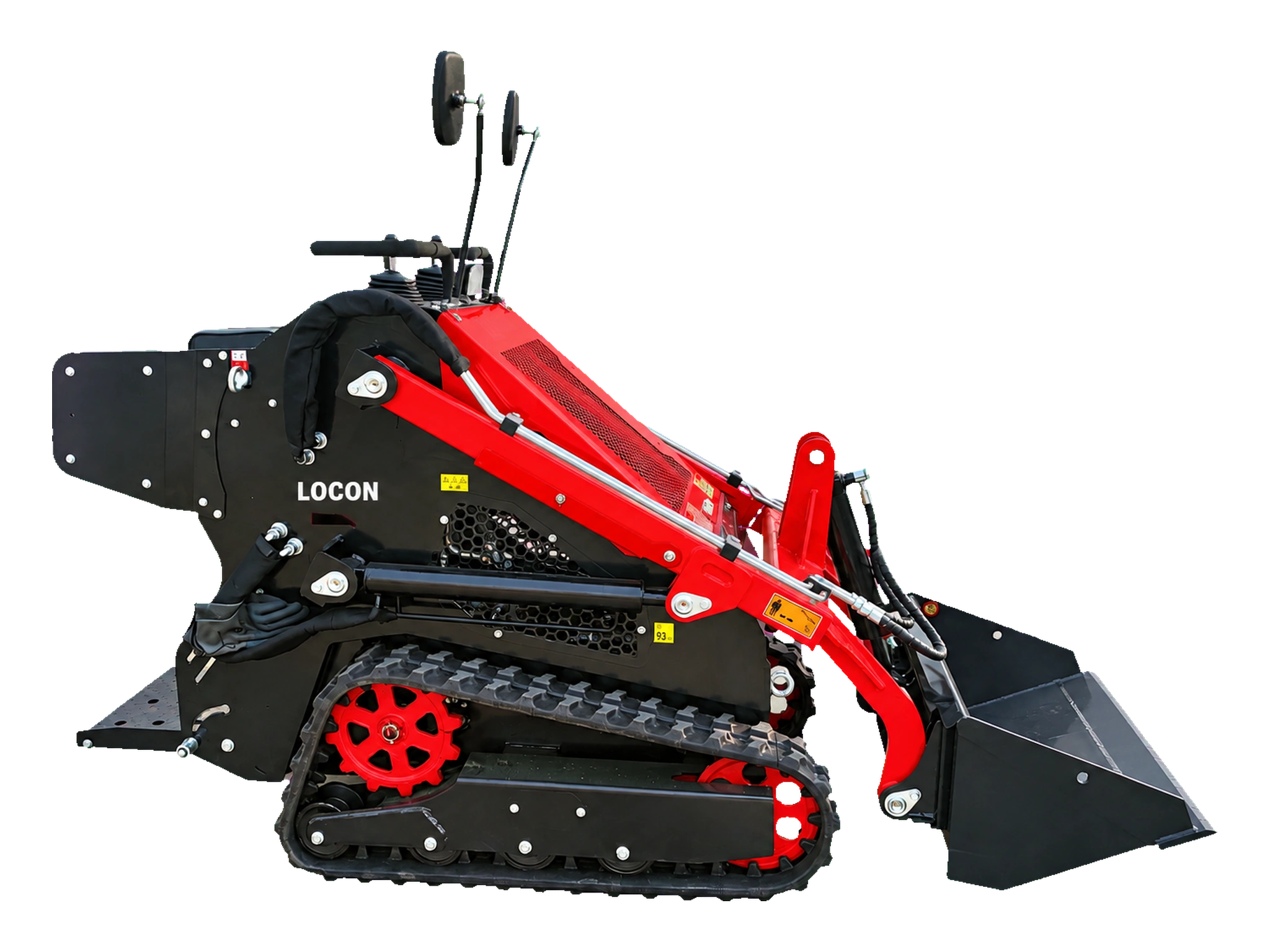

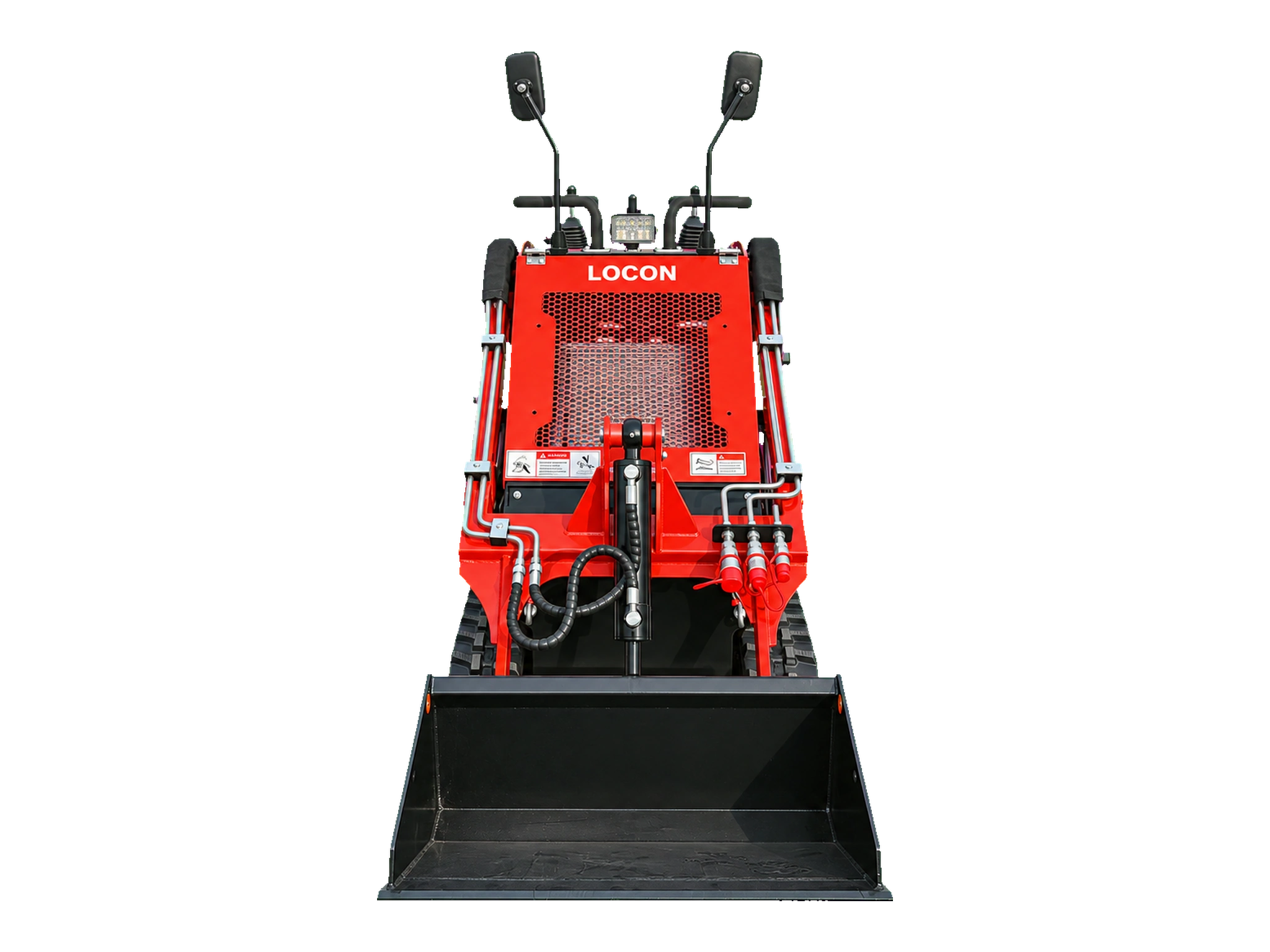

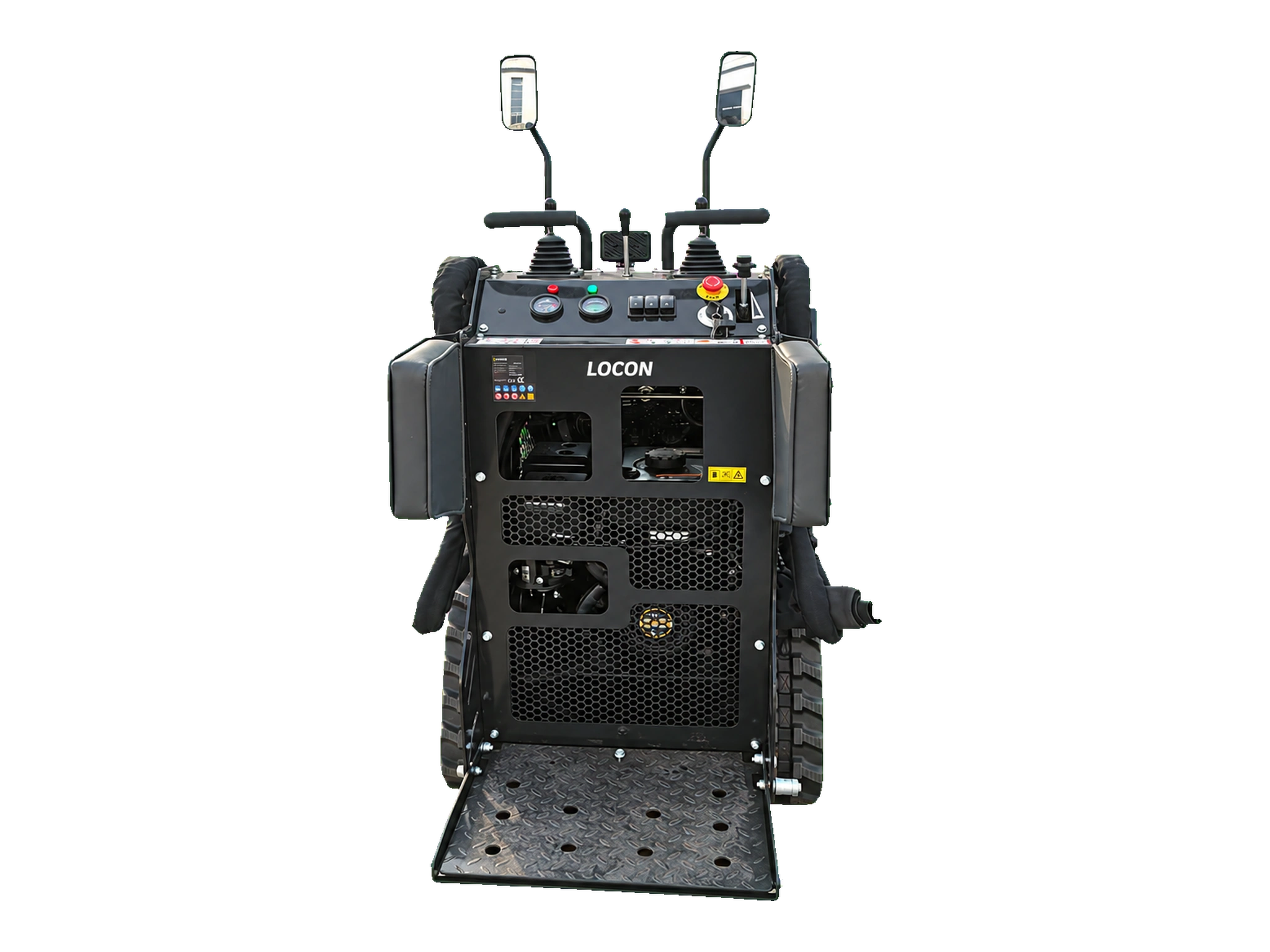

LOCON LCT180 Mini Track Loader / Product photographs
A closer look at the machine.
Branded images illustrate the exterior branding. Delivery configuration follows the agreed specification.
Product Overview
LOCON LCT180 Mini Track Loader
Stand-on mini track loader with a 180 kg rated operating capacity and a 620 kg operating weight.
Compare the specifications with your site access, load and attachment requirements. Contact us to discuss the configuration you need.
Rated Operating Capacity: 180 kg
Operating Weight: 620 kg
Rated Power: 7.1 kW
Before you order
Machine and attachment
Confirm the mounting interface, hydraulic pressure, flow and connections for the selected combination.
Configuration and delivery
Tell us the required configuration, quantity and delivery destination so we can prepare your quotation.
Technical Specifications
Technical Specifications
| 01 | Model | LCT180 |
|---|---|---|
| 02 | Engine | RATO R300-V |
| 03 | Rated Power | 7.1 kW at 3,600 rpm |
| 04 | Operating Weight | 620 kg |
| 05 | Net Weight Without Bucket | 620 kg |
| 06 | Rated Operating Capacity | 180 kg |
| 07 | Tipping Load | 368 kg |
| 08 | Bucket Capacity | 0.07 m³ |
| 09 | Travel Speed | 0–2.6 km/h |
| 10 | Rated Hydraulic Pressure | 17 MPa |
| 11 | Bucket Width | 770 mm |
| 12 | Lifting Time | 4.5 s |
| 13 | Lowering Time | 3.5 s |
| 14 | Dumping Time | 1.5 s |
| 15 | Engine Type | Single-cylinder gasoline engine |
| 16 | Starting Method | Manual / electric start |
| 17 | Specific Fuel Consumption | ≤374 g/kWh |
| 18 | Fuel Tank Capacity | 6.8 L |
| 19 | Engine Oil Capacity | 1.1 L |
| 20 | Hydraulic Oil Tank | 25 L |
| 21 | Overall Dimensions | 2400 × 770 × 1330 mm |
| 22 | Packing Dimensions | 1940 × 800 × 1350 mm |
Applications
Applications
- Construction and site preparation
- Farm and yard work
- Landscaping and property care
- Road and municipal maintenance
- Material handling in confined spaces
Attachments and configuration
Attachments and configuration
- Bucket
- Pallet fork
- Hydraulic earth auger
- Angle broom
- Concrete mixer bucket
- Log splitter
- Trencher
Attachment selection
Attachment selection
Listed tools are options to discuss, not confirmed combinations. Before use, check the loaded attachment weight, machine capacity at the working position, mounting interface and hydraulic requirements.
LOCON Hydraulic Earth Auger
LOCON Hydraulic Angle Broom
LOCON Concrete Mixer Bucket
LOCON Hydraulic Log Splitter
LOCON Trencher
